Extreme Environment Robotics Group, NASA Jet Propulsion Laboratory
Responsible for mechanical and electrical design of a rover masthead for field testing.
Responsible for mechanical and electrical design of a rover masthead for field testing.
Considered dust robustness, mount stiffness, window materials, and cooling fans to prepare for computer vision testing in Death Valley.
[Picture]

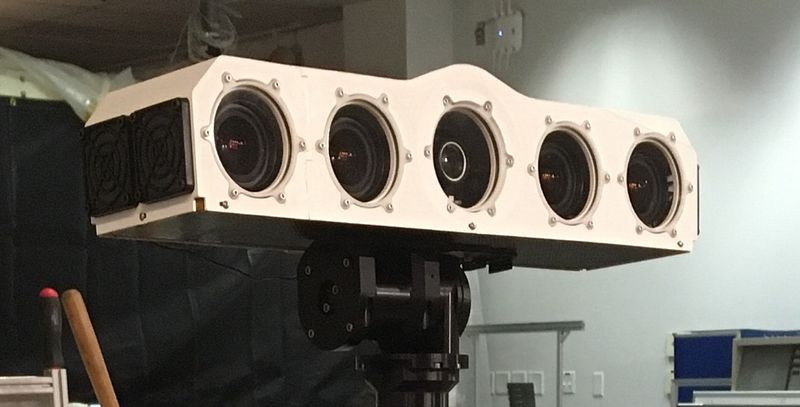

The completed masthead
[Picture]

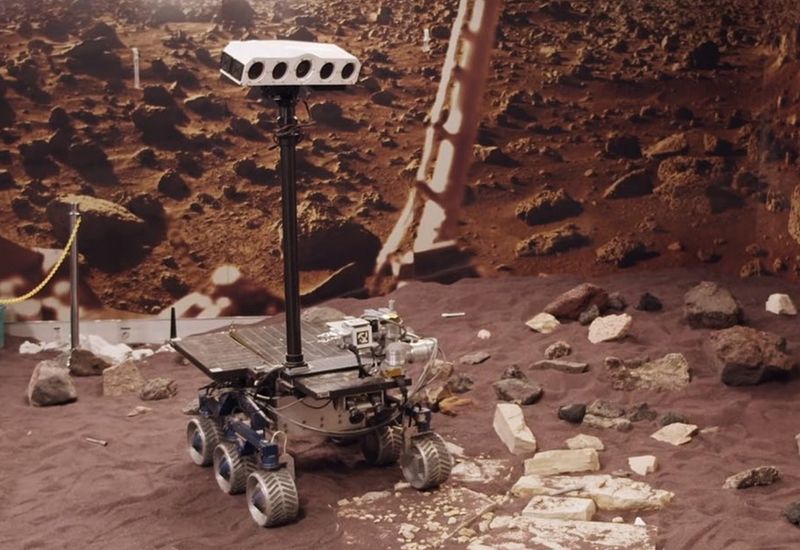

The masthead integrated on the testbed rover
[Picture]

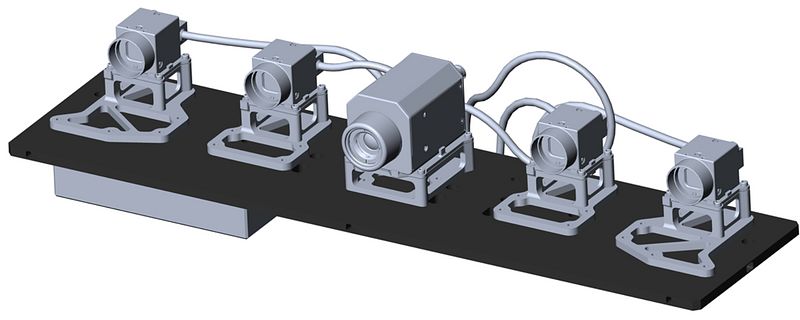

CAD of the masthead internals, including wiring
[Picture]

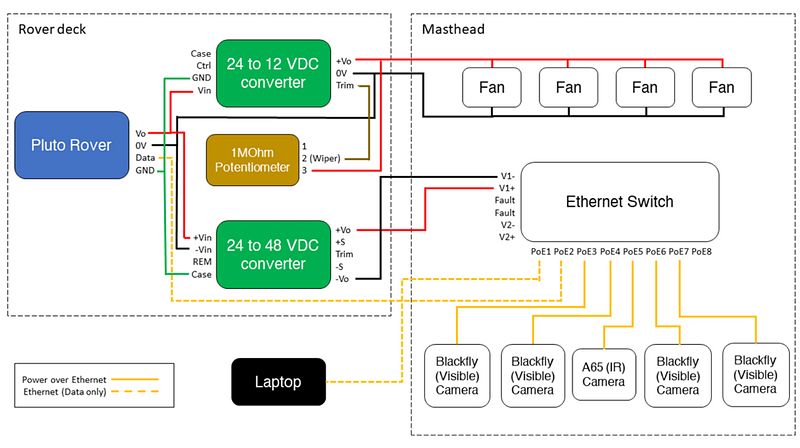

Wiring diagram of the masthead electrical system
